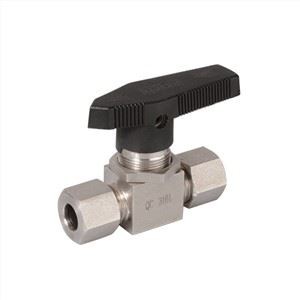

Kroglični ventili z dvojnim obročem
Priključna oblika: dvojni obroček
Nazivni tlak: 10000psi
Kanal: Preko vrste
Mediji: voda, olje, plin in alkalne ali kisle tekočine

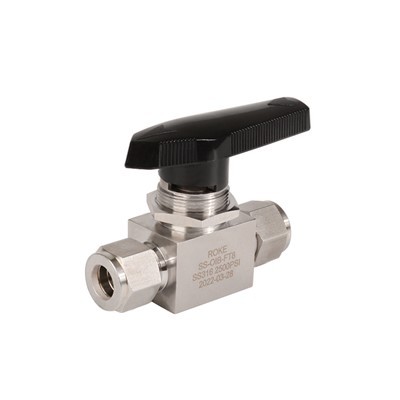

Kroglični ventili iz nerjavečega jekla 10000 psi
Podrobnosti
-
Zgradba: žoga
-
ŠT. modela:SS-BSB-FT16-18
-
Tlak: 10000psi
-
Napajanje: ročno
-
Tip: Fiksni kroglični ventil
-
Material: Nerjaveče jeklo, SS304, SS316, SS304L, SS316L
-
Temperatura medija: -40 stopinj F do 450 stopinj F (-40 stopinj do 232 stopinj)
-
Velikost vrat: 1/8 do 1 1/2 palca
-
Kraj izvora: Jiangsu, Kitajska
-
Uporaba: Industrijska uporaba
-
Vrsta navoja: NPT, BSPT, UNF ali kot vaša zahteva
-
Certifikat: CE,BV,ISO,DNV
-
Material tesnila: PEEK ali PTFE ali PCTFE
|
|
||||||||
|
Osnovno naročanje številka |
Vrsta in velikost povezave |
Odprtina v. (mm) |
Cv |
Dimenzija, in.(mm) |
||||
|
L |
B |
C |
E |
F |
||||
|
-BSB-FN4-10 |
1/4 ženski NPT |
0.41 (10.3) |
7.5 |
2.80 (71.0) |
1.40 (35.5) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-FN6-10 |
3/8 ženski NPT |
0.41 (10.3) |
7.5 |
2.80 (71.0) |
1.40 (35.5) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-FN8-10 |
1/2 ženski NPT |
0.41 (10.3) |
7.5 |
3.11 (79.0) |
1.56 (39.5) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-FN8-13 |
1/2 ženski NPT |
0.50 (12.7) |
10 |
3.45 (90.0) |
1.77 (45.0) |
1.50 (38.0) |
5.71 (145) |
1.89 (48.0) |
|
-BSB-FN12-13 |
3/4 ženski NPT |
0.50 (12.7) |
10 |
4.09 (104) |
2.05 (52.0) |
1.50 (38.0) |
5.71 (145) |
1.89 (48.0) |
|
-BSB-FN12-18 |
3/4 ženski NPT |
0.71 (18.0) |
30 |
3.81 (96.8) |
1.91 (48.4) |
1.96 (50.0) |
6.30 (160) |
2.08 (53.0) |
|
-BSB-FN16-18 |
1 ženski NPT |
0.71 (18.0) |
30 |
4.80 (122) |
2.40 (61.0) |
1.96 (50.0) |
6.30 (160) |
2.08 (53.0) |
|
-BSB-MN4-7 |
1/4 moški NPT |
0.28 (7.1) |
3.7 |
3.36 (85.4) |
1.68 (42.7) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-MN6-10 |
3/8 moški NPT |
0.28 (7.1) |
3.7 |
3.36 (85.4) |
1.68 (42.7) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-MN8-10 |
1/2 moški NPT |
0.41 (10.3) |
7.5 |
3.75 (95.2) |
1.88 (47.6) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-MN12-13 |
3/4 moški NPT |
0.50 (12.7) |
10 |
4.14 (105.2) |
2.07 (52.6) |
1.50 (38.0) |
5.71 (145) |
1.89 (48.0) |
|
-BSB-MN12-18 |
3/4 moški NPT |
0.71 (18.0) |
19 |
4.54 (115.2) |
2.27 (57.6) |
1.96 (50.0) |
6.30 (160) |
2.08 (53.0) |
|
-BSB-MN16-18 |
1 moški NPT |
0.71 (18.0) |
30 |
4.91 (124.8) |
2.45 (62.4) |
1.96 (50.0) |
6.30 (160) |
2.08 (53.0) |
|
-BSB-FT4-5 |
1/4 cevi |
0.19 (4.8) |
1.2 |
3.60 (91.6) |
1.80 (45.8) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-FT6-7 |
3/8 cev |
0.39 (7.1) |
3.7 |
3.72 (94.6) |
1.86 (47.3) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-FT8-10 |
1/2 cevi |
0.41 (10.3) |
7.5 |
3.92 (99.6) |
1.96 (49.8) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-FT10-13 |
5/8 cev |
0.50 (12.7) |
10 |
4.36 (110.6) |
2.29 (58.3) |
1.50 (38.0) |
5.71 (145) |
1.89 (48.0) |
|
-BSB-FT12-13 |
3/4 cevi |
0.50 (12.7) |
10 |
4.36 (110.6) |
2.29 (58.3) |
1.50 (38.0) |
5.71 (145) |
1.89 (48.0) |
|
-BSB-FT12-18 |
3/4 cevi |
0.71 (18.0) |
19 |
4.59 (116.6) |
2.29 (58.3) |
1.96 (50.0) |
6.30 (160) |
2.08 (53.0) |
|
-BSB-FT16-18 |
1 cev |
0.71 (18.0) |
30 |
5.11 (129.8) |
2.66 (64.9) |
1.96 (50.0) |
6.30 (160) |
2.08 (53.0) |
|
-BSB-MT6-5 |
6 mm cev |
0.19 (4.8) |
1.2 |
3.56 (90.4) |
1.78 (45.2) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-MT8-6 |
8 mm cev |
0.25 (6.4) |
2.3 |
3.60 (91.6) |
1.80 (45.8) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-MT10-7 |
10 mm cev |
0.39 (7.1) |
3.7 |
3.72 (94.6) |
1.86 (47.3) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-MT12-10 |
12mm cev |
0.41 (10.3) |
7.5 |
3.92 (99.6) |
1.96 (49.8) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-MT14-10 |
14mm cev |
0.41 (10.3) |
7.5 |
3.94 (100) |
1.97 (50.0) |
1.30 (32.0) |
5.12 (130) |
1.73 (44.0) |
|
-BSB-MT16-13 |
16mm cev |
0.50 (12.7) |
10 |
4.42 (112.2) |
2.21 (56.1) |
1.50 (38.0) |
5.71 (145) |
1.89 (48.0) |
|
-BSB-MT18-13 |
18mm cev |
0.50 (12.7) |
10 |
4.42 (112.2) |
2.21 (56.1) |
1.50 (38.0) |
5.71 (145) |
1.89 (48.0) |
|
-BSB-MT20-13 |
20 mm cev |
0.50 (12.7) |
10 |
4.44 (112.8) |
2.22 (56.4) |
1.50 (38.0) |
5.71 (145) |
1.89 (48.0) |
|
-BSB-MT22-18 |
22mm cev |
0.50 (12.7) |
10 |
4.44 (112.8) |
2.22 (56.4) |
1.50 (38.0) |
5.71 (145) |
1.89 (48.0) |
|
-BSB-MT22-18 |
22mm cev |
0.71 (18.0) |
19 |
4.87 (123.8) |
2.43 (61.9) |
1.96 (50.0) |
6.30 (160) |
2.08 (53.0) |
|
-BSB-MT25-18 |
25mm cev |
0.71 (18.0) |
30 |
5.11 (129.8) |
2.66 (64.9) |
1.96 (50.0) |
6.30 (160) |
2.08 (53.0) |
